Railroad Museum of Pennsylvania

Date: 2012
Cost: $6,500,000

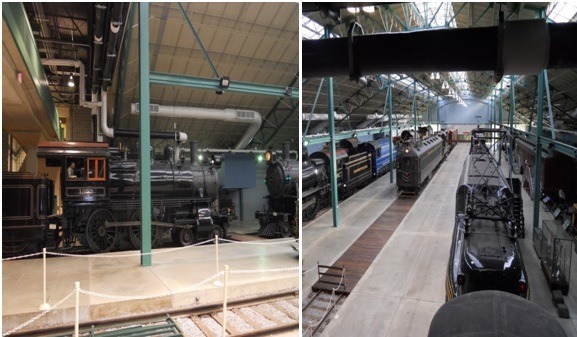

Strausburg, PA- The Railroad Museum is an historic building approximately 95,000 SF housing train and rail artifacts.  MUEI is responsible for the design of a new HVAC system to provide heating and cooling to the facility.  The design included, 2 make-up air handling units, 30 platform mounted water source heat pumps, 125 geothermal wells, 5 geothermal well flushing vaults, variable speed pumping system and building automatic control system.  We used computer based programming for well pipe depth requirements and pipe
sizing.  The design was in consideration of an occupied building and rare artifacts.
